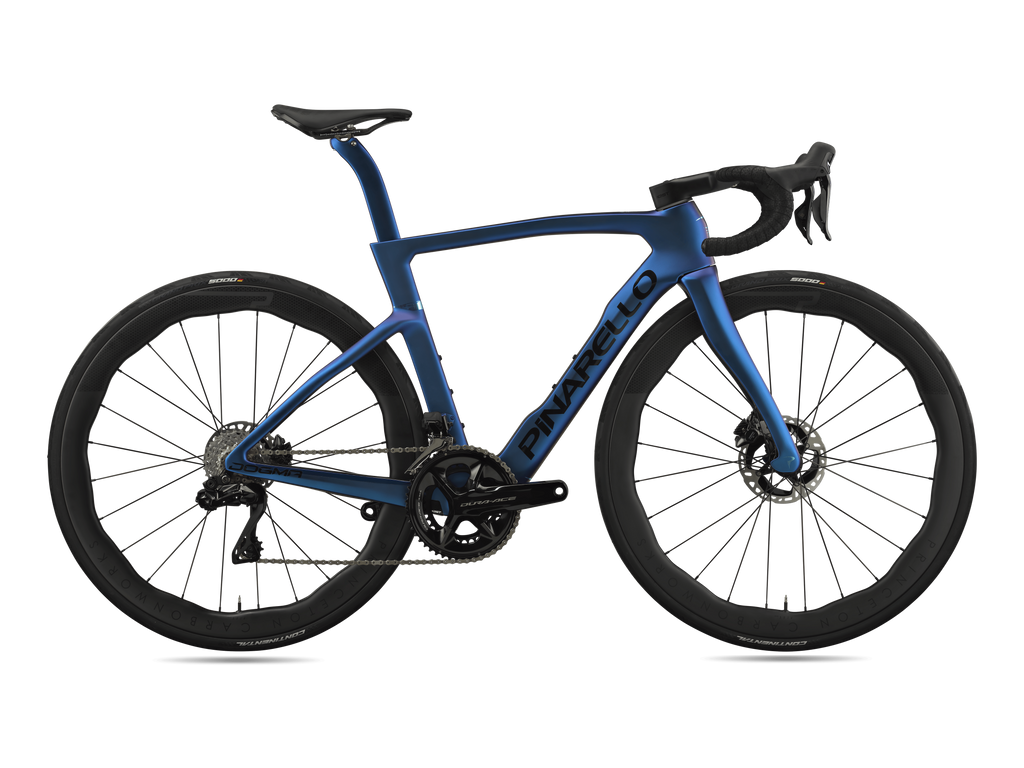

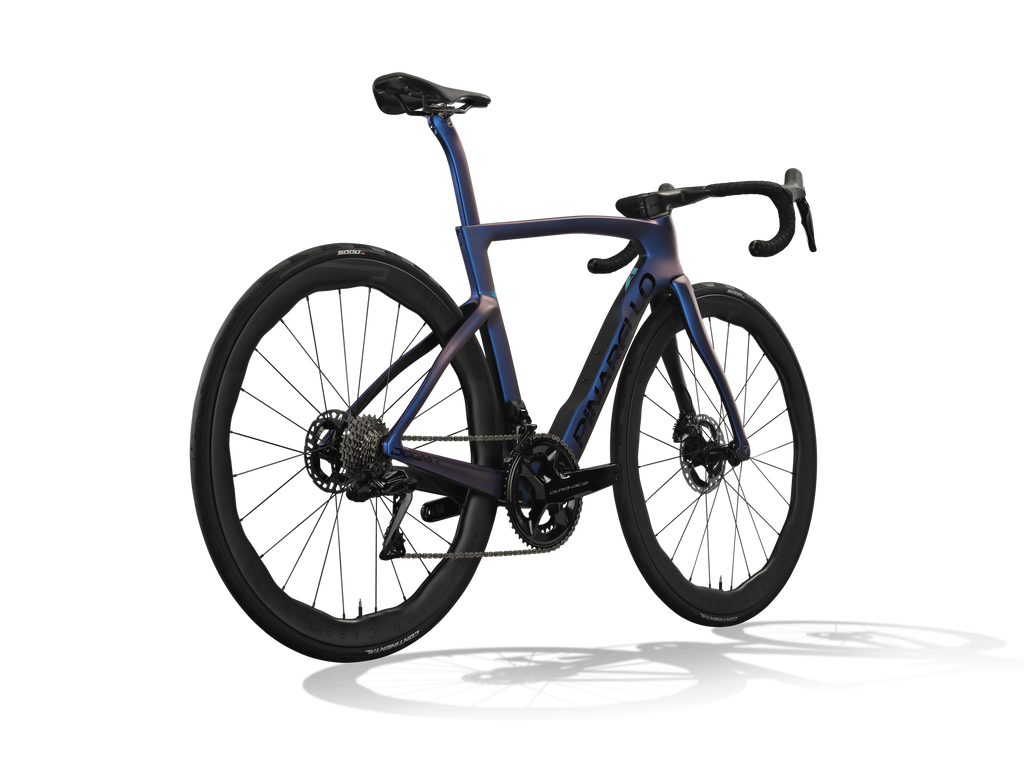

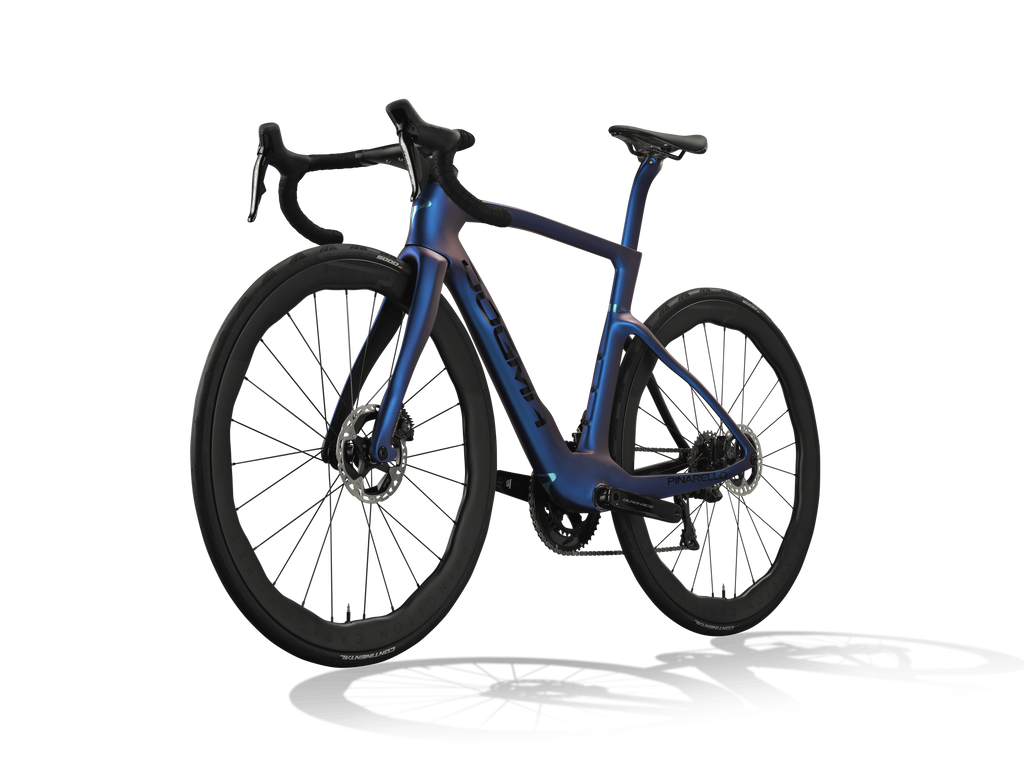

DOGMA F DURA ACE LUXTER BLUE

Product No. 17DOFDBDAPMG112595
EAN 5703757351740
Size 59,5cm

Key Specs:

Frame & Chassis

• Frame: TorayCa M40X carbon fiber with Nanoalloy technology

• Fork: New eTICR Onda fork with ForkFlap™, 1.5" steerer

• Cable routing: TiCR™ fully internal routing

• Bottom bracket: Italian threaded BB

• Frame design: Asymmetric Pinarello structure for power transfer

Drivetrain

• Groupset: Shimano Dura-Ace Di2 R9200 electronic

• Speeds: 2×12-speed

• Crankset: Shimano Dura-Ace FC-R9200 (Hollowtech II)

• Front derailleur: Shimano Dura-Ace FD-R9200 Di2

• Rear derailleur: Shimano Dura-Ace RD-R9200 Di2

• Cassette: Shimano Dura-Ace CS-R9200 (often 11-30)

• Chain: Shimano Dura-Ace CN-HG12

Brakes

• Type: Hydraulic disc brakes

• Calipers: Shimano BR-R9270

• Rotors: typically 160 mm front / 140–160 mm rear depending on build.

Wheels & Tires

• Wheelset: often Princeton Peak 4550 DB carbon wheels

• Axles: 12×100 mm front / 12×142 mm rear

• Tires: Continental Grand Prix 5000 S TR (usually 28 mm)

Cockpit & Components

• Handlebar/stem: MOST Talon Ultra Fast integrated cockpit

• Seatpost: Pinarello aero carbon seatpost with 3D-printed titanium clamp

• Saddle: MOST Lynx Ultrafast Superflow carbon

• Bar tape: MOST bar tape
